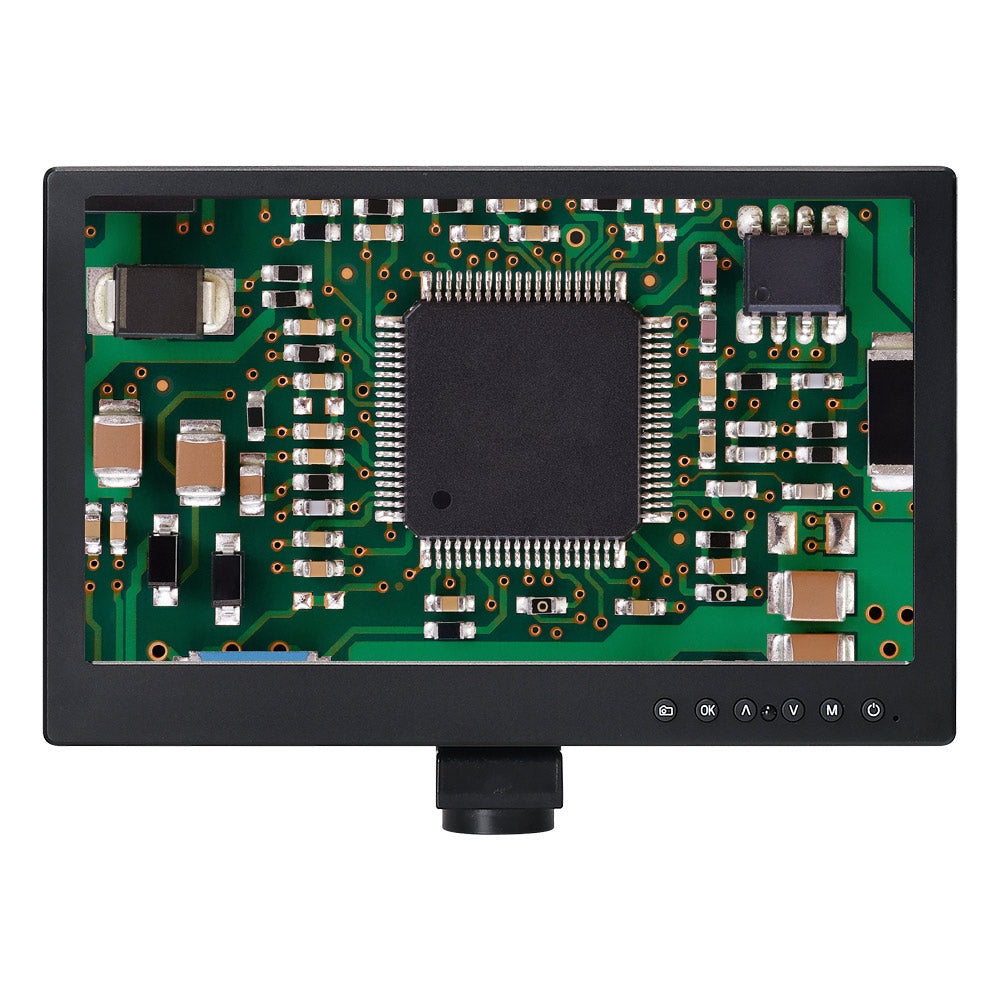

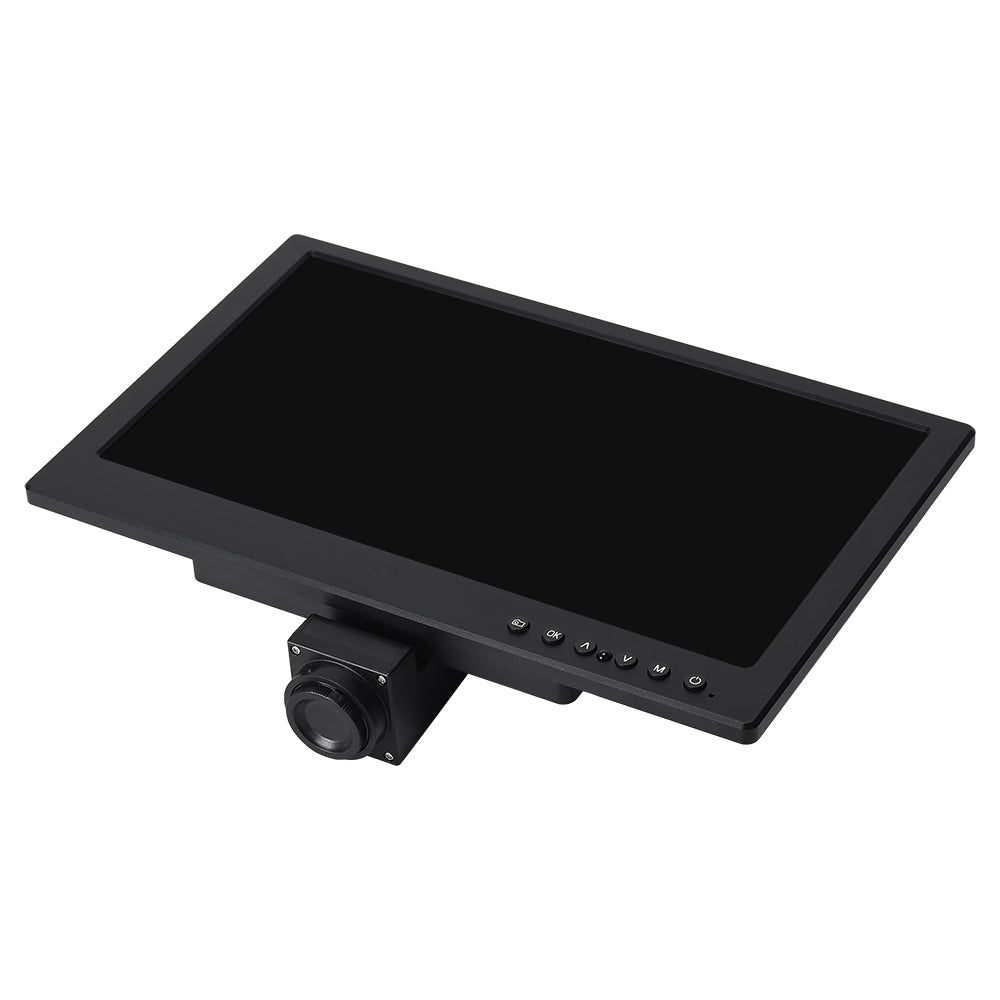

11.6 inch LCD monitor 16MP Camera all-in-one screen display for microscope

11.6 inch LCD monitor 16MP Camera all-in-one screen display for microscope

$246.00 USD
$246.00 USD
促销 售罄

Features：


1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high‑quality materials, strong and durable, has a long service life.
4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

Specification:

Sensor 16 Megapixel SONY IMX sensor
Pixel Size 2.0 × 2.0μm
Sensor Size 1/2.8 inch
Video Output Interface HDMI / USB (HD Interface)
Resolution 1920x1080@60FPS（HDMI）
Monitor size 11.6 inches
USB Output 1920x1080@30FPS(USB)
Video Ratio Support 16:9, 4:3 Mode
Picture Resolution 4608 x 3456
Frame Rate 30@FPS
Color R/G/B support manual adjustment
Cross line 5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
Zoom 7X digital zoom
Magnifier Function Support magnifying in same screen
Sensitivity Level Middle(can be used with extra light source)
Interface for Lens Standard C/CS Interface
Dynamic Range 40dB
PC Systems Support Windows XP/7/8/10, with measurement software(gift)
Picture Format JPEG
Language CN, EN, JP, FR, DE, RU, IT, KR, TUR
Working Voltage 12V/1A
Spectral Response (Wavelength) 400nm~700nm (Strong)
White Balance Manual/Auto
SNR 45dB
Mirror Image Support Up/Down, Right/Left
Black & White Mode Support
Storage TF Card, Maximum support 256GB
Working Temperature -40°C~70°C

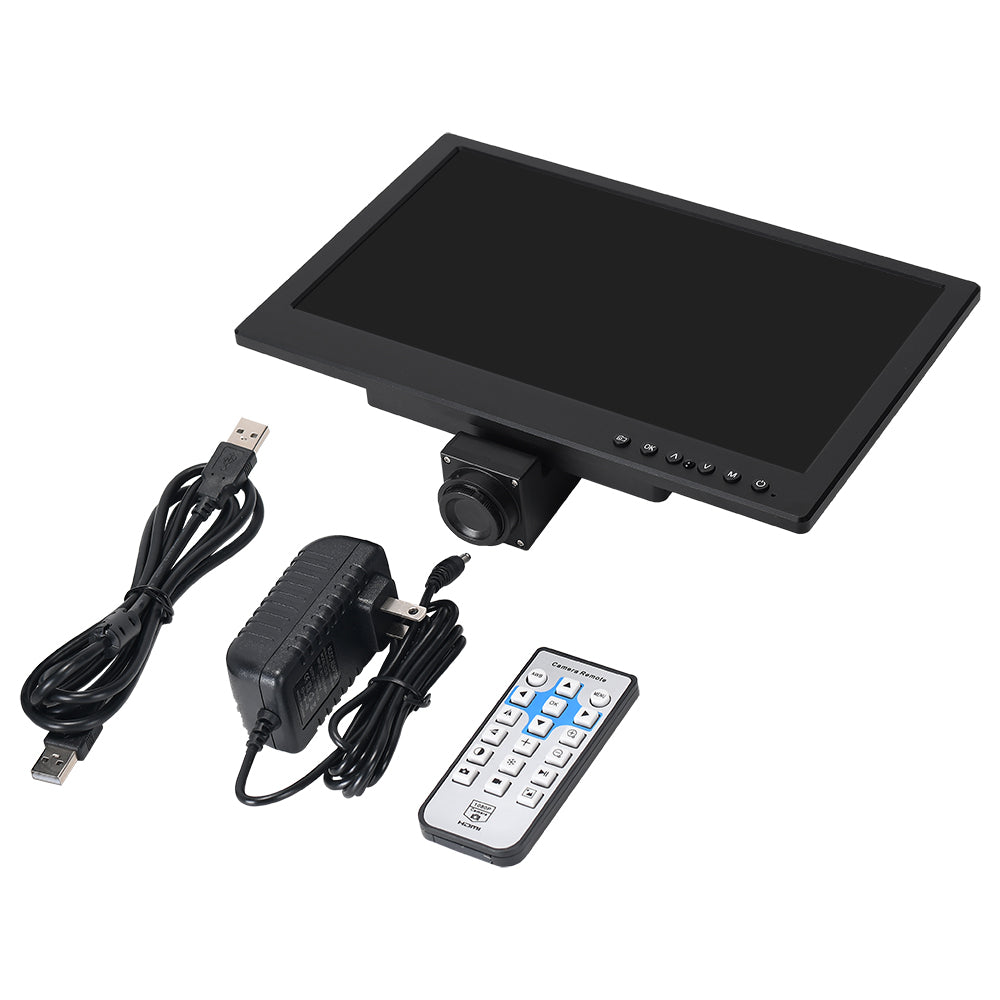

The packaging includes:
1 x 11.6 inch Microscope Camera
1 X Power supply
1 X USB cable
1 X Remote control
1 X HDMI cable

Option：
1 x0.5x C-mount 23.2mm Adapter
1 x30mm Adapter
1 x30.5mm Adapter
